I just got some of the telemetry for my ERBE and I was wondering if I need power tap sensor TRA#6541 if I have Temp/Voltage Sensor TRA#6521? I read of a hard wire directly to the positive connector. (XO-1 I think) Is this true? Please help! I can see the power tap has a Traxxas connector but with a female RX plug! Thanks all in advance.

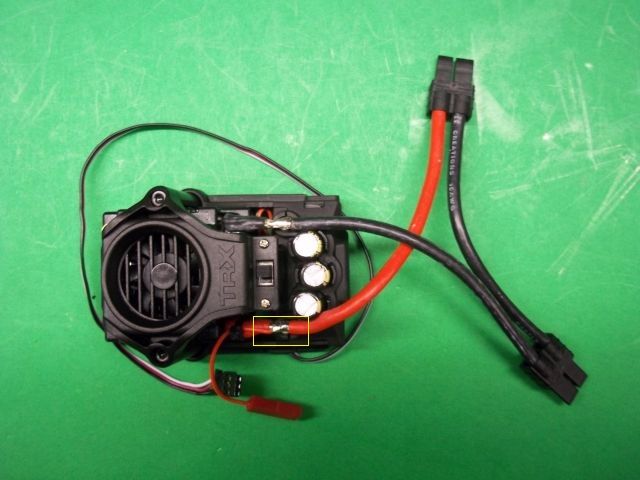

In the yellow box is where it is soldered on a XO-1 esc.
This is where I soldered mine on my MMP for my stampede 4x4.
Ok! Thanks! I soldered mine directly too! I was waiting for the Traxxas power tap! TRA#6541 it's says works in conjunction with temp sensor TRA#6521 but the two red connectors weren't even the same. Power tap is a standard female Rx plug and the volt/temp sensor volt plug was a JST male connector. But I appreciate the help!
